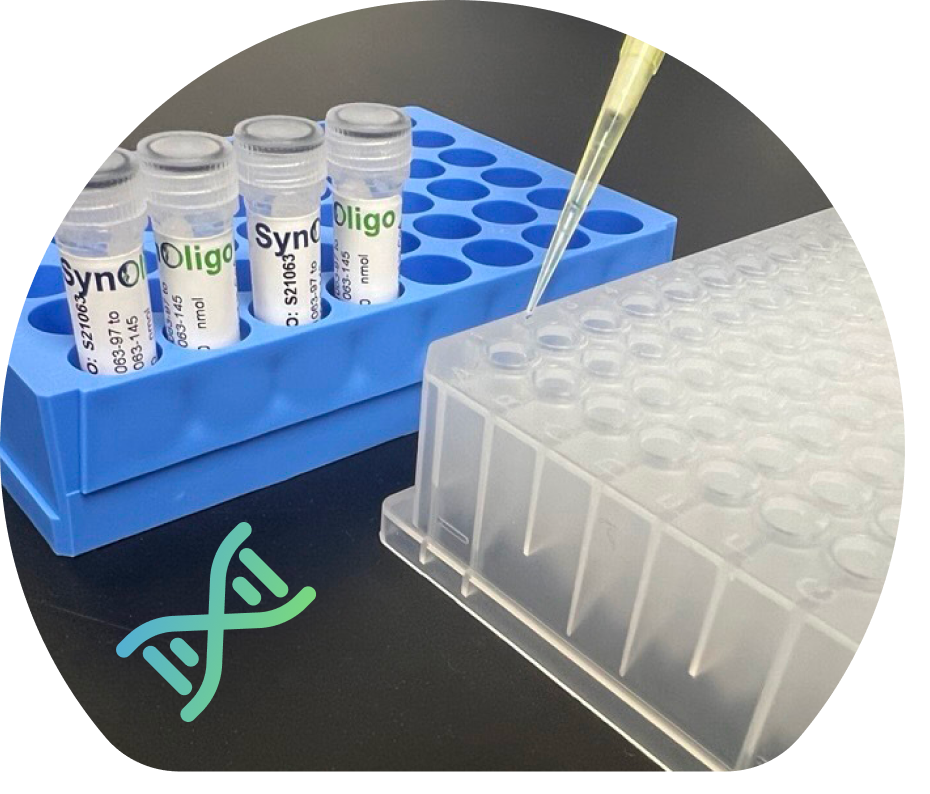

What are Oligonucleotides?
Oligonucleotides are short fragments of nucleic acids, which can either be DNA or RNA. These small molecules can be synthesized in a lab setting and used in a wide range of applications such as genetic testing, research, diagnostics and therapeutics.

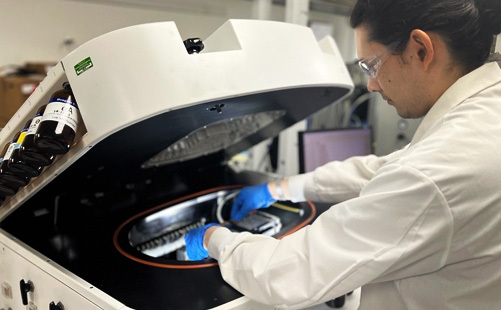

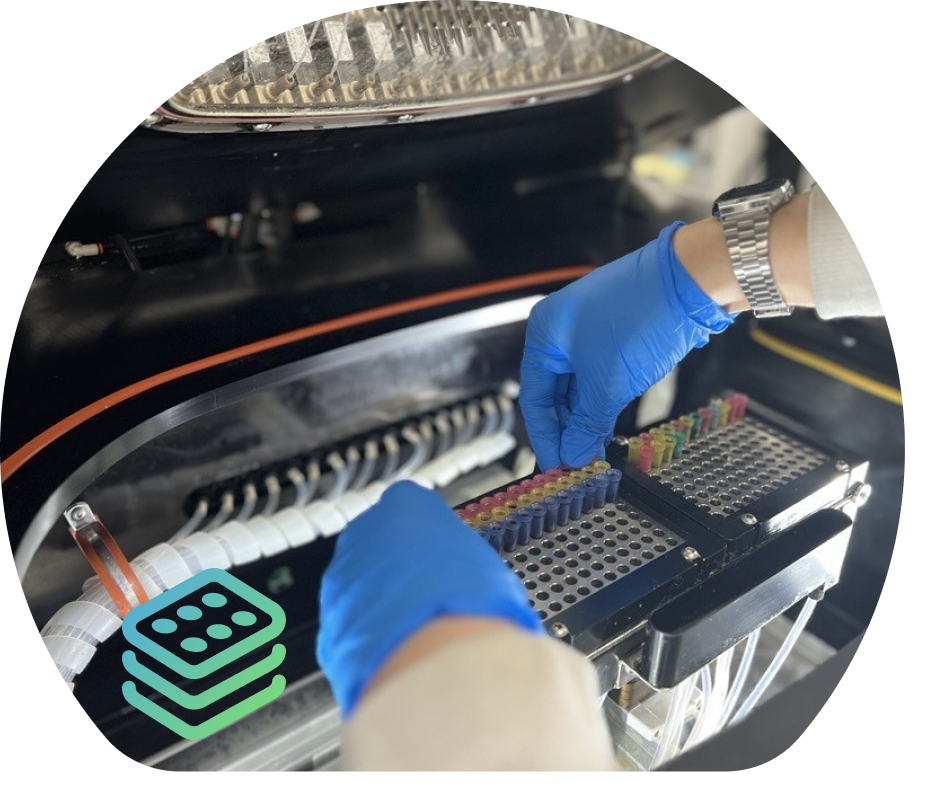

How do oligonucleotides get synthesized?
Oligo synthesis began as early as the 1950s using different methods such as H-phosphonate, phosphodiester, and phosphite triester. With gradual improvements, phosphoramidites method became the go-to process and industry standard. This method uses solid-phase support, where an oligonucleotide being assembled is covalently attached and remains bound throughout the entire process. Check out the steps below on how each nucleotide is added to the oligonucleotide.

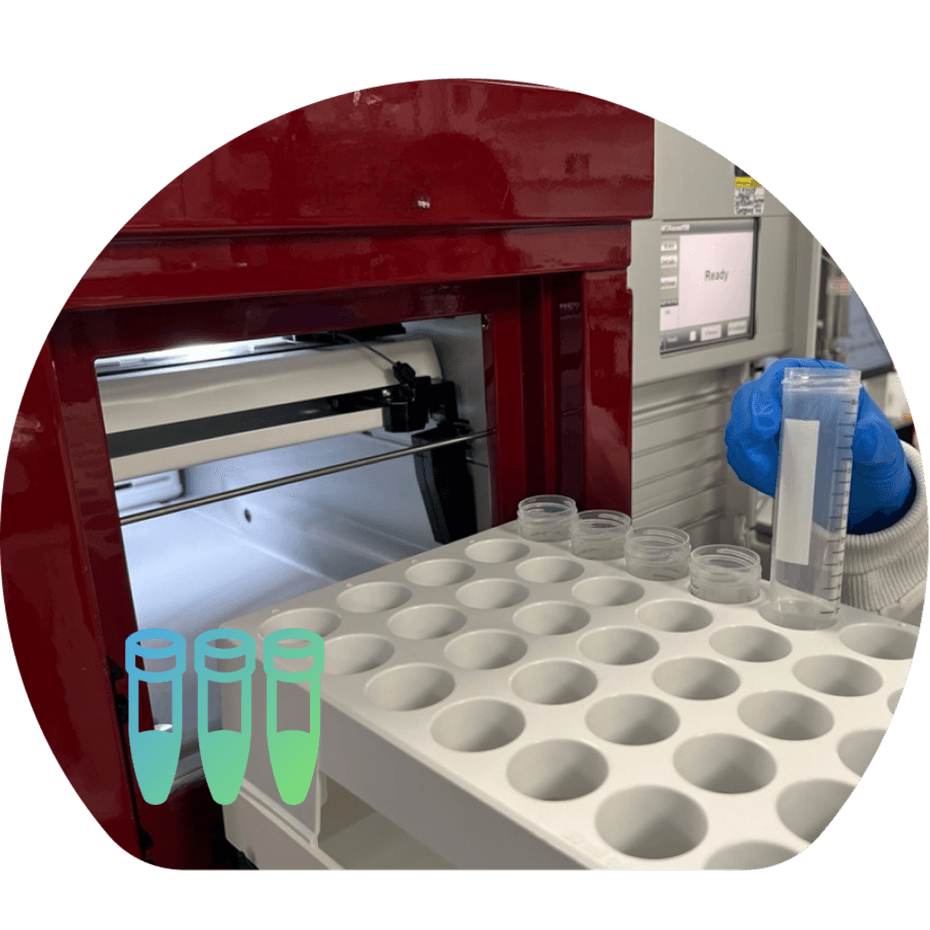

How do oligonucleotides get purified?
Post synthesis, oligonucleotides will go through purification to remove any synthesis byproducts like impurities from the removal of protecting groups, truncated sequences or chemical contaminants. There are several standard purification methods Synoligo and the rest of the industry uses. Read more below on each method and their application.

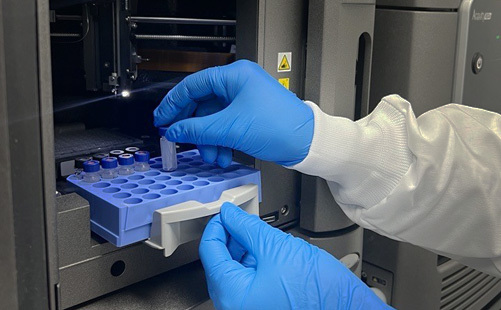

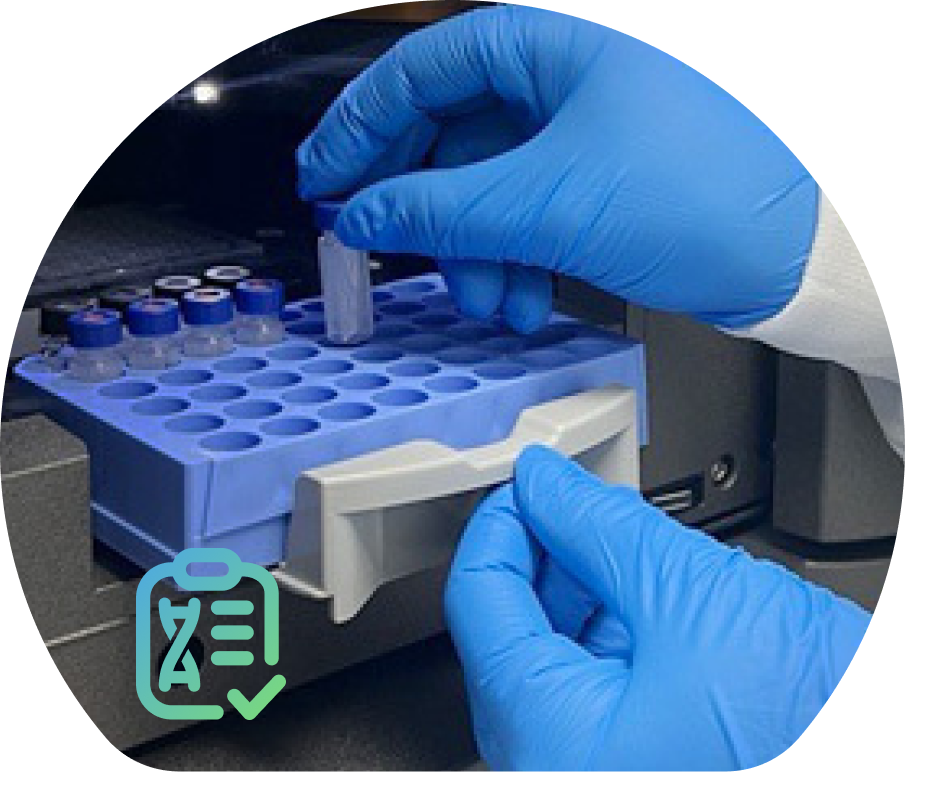

What QC methods are used for final product?
QC is a critical step in oligo synthesis to ensure synthesized product has the correct sequence and purity. Various QC methods can be used to assess the integrity of the oligos to meet the required specifications and applications.
Stages of Synthesis
STAGE 01
Initiation
Attachment of the first nucleotide to a solid support. The most common ones are polystyrene and controlled pore glass (CPG or PS). This is the starting point of the growing chain.
STAGE 02
Activation & Coupling
After the removal of the 5’-DMT protecting group from the support-bound 3’-nucleoside, detritylation, the next base is ready to be added. An excess of appropriate nucleoside phosphoramidite monomer gets protonated through dissolving with an activator (tetrazole) in acetonitrile. The process allows the coupling of 5’-hydroxyl group of the support-bound nucleoside to the new nucleotide forming a phosphite-triester.
STAGE 03
Capping
To prevent unreacted 5’-hydroxyl group of the support-bound nucleoside to partake in the next coupling step, capping is required to block the 5’-hydroxyl group. Acetic anhydride and N-methylimidazole (NMI) combine to form activated acetic acid, which is used for acetylation of the 5’-hydroxyl group.
STAGE 04
Oxidation & Detritylation
The bond of the phosphite-triester from the coupling step is unstable to acid and needs to be strengthened through iodine oxidation before the next detritylation step. Detritylation happens again to remove the 5’-end of the support-bound DNA chain so the primary hydroxyl group can bind with the next nucleotide. The cycle will repeat for each base until the required sequence is met.
STAGE 05
Cleavage from Solid Support
The linker that attaches the 3’-end of the oligo to the support group and the most frequently used in synthesis is succinyl linker. This linker can be cleaved by incubating in ammonium hydroxide for one hour at room temperature. This step can be done on some synthesizers or manually by removing the column from the synthesizer and washing it with ammonium hydroxide.
STAGE 06
Deprotection
To get ready for purification, the oligonucleotide is heated in the concentrated aqueous ammonia from previous step to remove protecting groups from the heterocyclic bases (A, C & G), and the phosphodiester backbone (protected as 2-cyanoethyl phosphotriesters).
Purification Methods

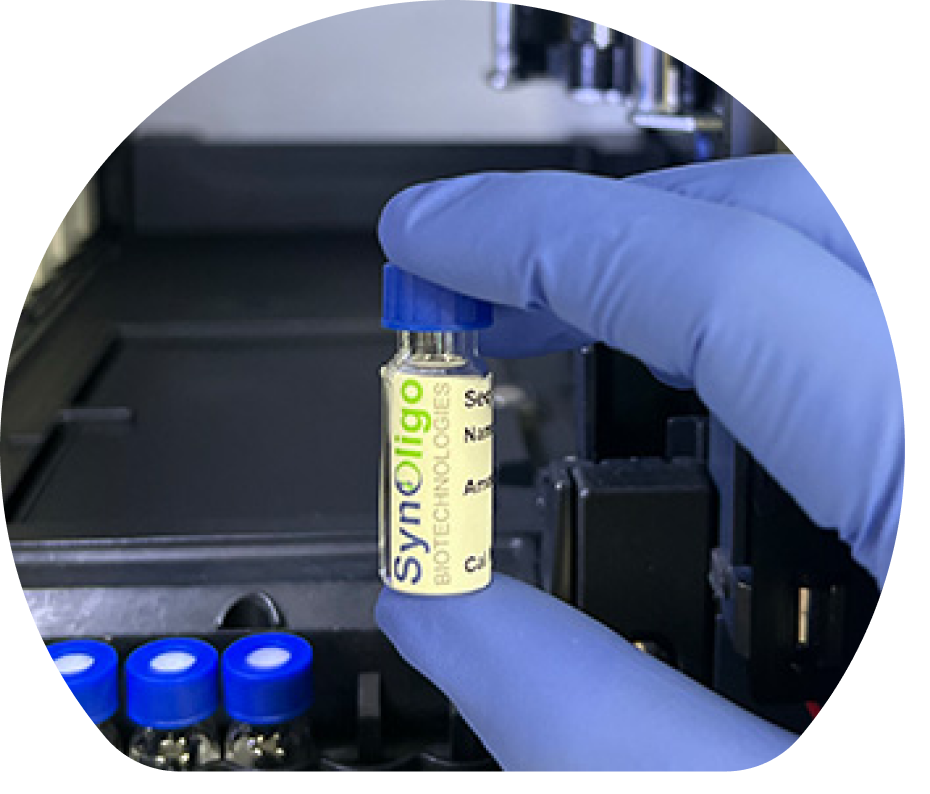

Reverse Phase (RP-HPLC)
Commonly used to check for purity of modified or labeled oligos. This method separates based on hydrophobicity.
Anion Exchange (AEX-HPLC)
Commonly used for phosphorothioate-modified oligos and it is separated by charge.
Hydrophobic interaction chromatography (HIC)
Hydrophobic interaction chromatography separate molecules based on their surface hydrophobicity. Contrary to AEX, product elutes in low salt concentration. Many applications have been published using this technique for DMT-ON purification and then on-column DMT cleavage

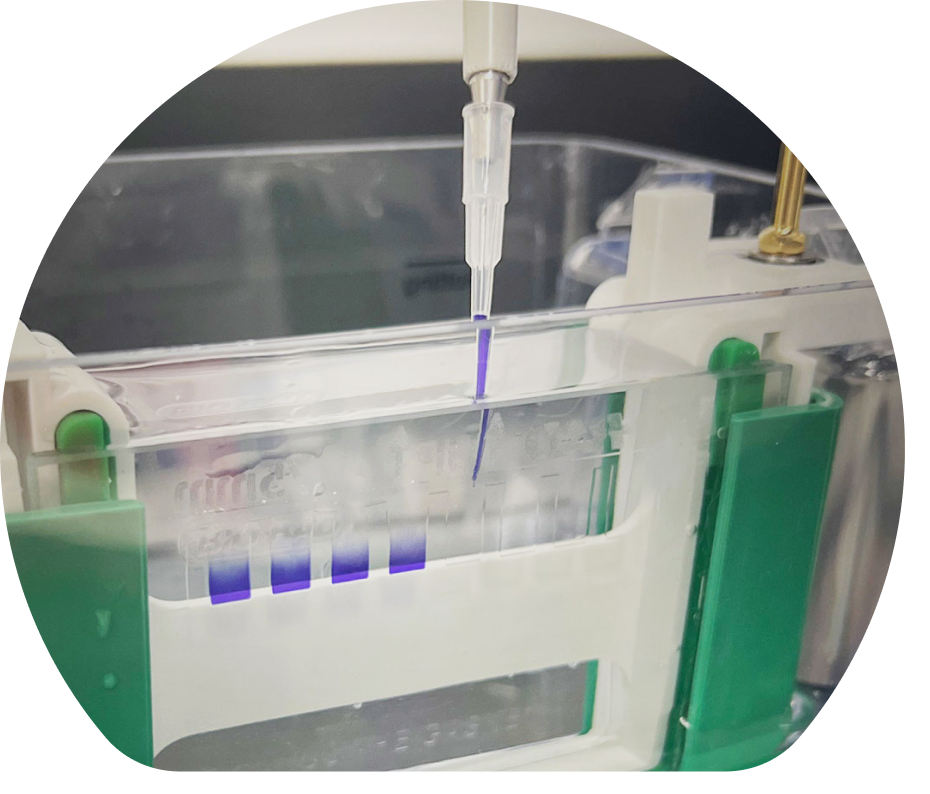

Post Purification QC Methods
Synoligo's Competitive Advantage
State-Of-The-Art Equipment
Optimal efficiency in production, purification and lyophilization
Large Selection Of Raw Materials for Common and Rare Modifications
Enable quick start of your project
Specialization in Complex Oligo Modifications
Can take on custom projects that are difficult or do not fit in standard workflow from other CROs
Automated Workflow
Can meet any demands for low & high throughput (column & plate formats)
Stringent QC Method
Can guarantee accuracy, yields and quality based on the project
Additional Services with Custom Project
Process transfer for final product manufacturing – clinical use
Popular Modification
Synoligo synthesized oligos with common modifications daily. Our specialization is manufacturing oligos with complex modifications. Below is a list of popular modifications that can be synthesized for DNA/RNA oligos. Contact us for more information on modifications that fit your need.
Common Modifications | |||
---|---|---|---|
Attachment Modifications |
Biotin |
BiotinTEG |
|
Thiol-C6 S-S |
Aminolinker |
||
Thiol-C3 S-S |
dTAminolinker |
||
Quencher |
MGB |
Eclipse |
|
BHQ1/2 |
and more |
||
Dabcyl |
|||
Fluorescent Dye |
ROX |
TAMRA |
CY5 |
FAM |
TET |
CY3 |
|
HEX |
Cy5.5 |
and more |
|
Modified Bases |
dI |
dU |
|
Phosphorothioate |
and more |
||
Other Custom Mods |
|||
Peptide |
Enzymatic Ligation |
||
Protein |
5' and 3' Phosphorylation (Phosphate) |
||
Antibody |
|||
TNA |
BNA |
MOE |
|
FANA |
GNA |
Applications of Oligos
With decades of experience, our expert team specializes in manufacturing oligos tailored to diverse scientific applications, ensuring your specific needs are met.
Research & Innovation
Extensive list of customization allows researchers to achieve their research goals.
Molecular Diagnostics
Broad selection of various dyes and probes.
Therapeutic Development
Guarantee ultra low endotoxin even for lipid modified oligo.
- Branched/dendrimer
- Circular DNA/RNA
- Ultra-long oligos (150-200nt)
- DNA-encoded library (DEL)
- Primers PCR/qPCR
- FISH/MERFISH Probes
- FRET Probes
- NGS Adapters
- Molecular Beacon
- Antisense
- Immunostimulatory
- mi-/sa-/siRNA
- Aptamer
- CRISPR gRNA
Applications of Oligos
With decades of experience, our expert team specializes in manufacturing oligos tailored to diverse scientific applications, ensuring your specific needs are met.
Research & Innovation
Extensive list of customization allows researchers to achieve their research goals.
- Branched/dendrimer
- Circular DNA/RNA
- Ultra-long oligos (150-200nt)
- DNA-encoded library (DEL)
Molecular Diagnostics
Broad selection of various dyes and probes.
- Primers PCR/qPCR
- FISH/MERFISH Probes
- FRET Probes
- NGS Adapters
- Molecular Beacon
Therapeutic Development
Guarantee ultra low endotoxin even for lipid modified oligo.
- Antisense
- Immunostimulatory
- mi-/sa-/siRNA
- Aptamer
- CRISPR gRNA
